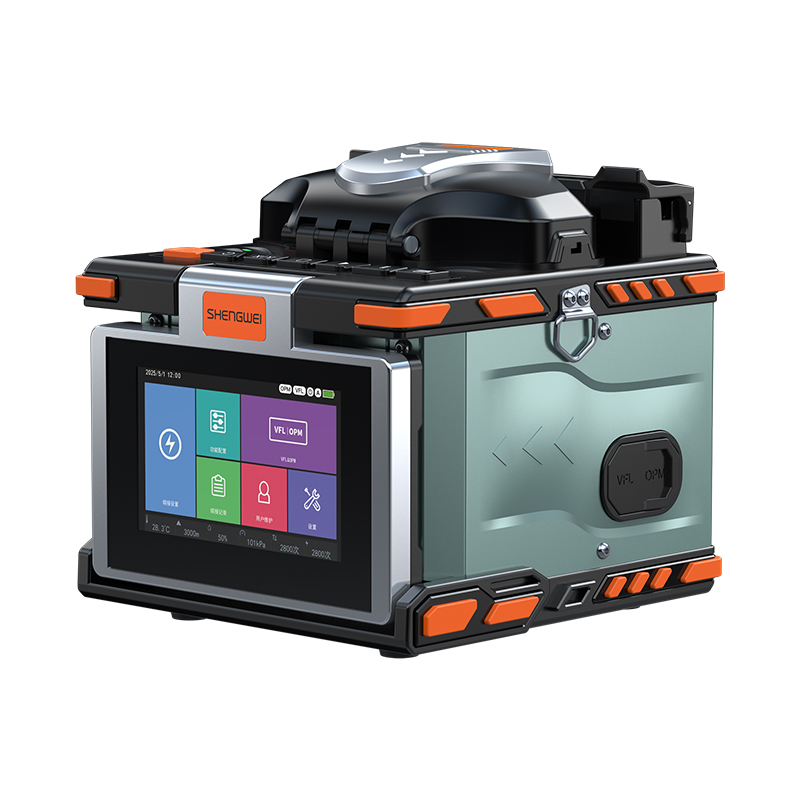

SHENGWEI GRQ60001 / GRQ60002 6-Motor Fiber Fusion Splicer
A six-motor core-alignment fusion splicer with built-in VFL and OPM, typical 8-second splicing, 18-second heating, and a 4.3-inch touchscreen.
Content last reviewed:
Ask about this product on WhatsAppProduct description
The GRQ60001 code in the Indonesian product list has been confirmed as equivalent to the GRQ60002 model published by SHENGWEI. The unit uses six-motor core and cladding alignment for FTTH and fiber-maintenance work, while integrating a VFL, optical power meter, automatic/manual modes, and splice-record storage.
Reviewed specifications
The specifications below follow the approved product data. The supplied version must still be matched to the project requirements.
- Model mapping
- GRQ60001 / GRQ60002 (confirmed equivalent)
- Alignment
- Six-motor core and cladding auto-focus
- Applicable fibers
- SMF G.652 / MMF G.651 / DSF G.653 / NZDSF G.655
- Typical splice loss
- SMF 0.02 dB; MMF 0.01 dB; DSF/NZDSF 0.04 dB
- Splice / heat time
- 8 sec / 18 sec typical
- Display
- 4.3-inch capacitive touchscreen
- VFL
- Over 10 mW
- OPM
- -70 to +3 dBm, 850–1625 nm
- Battery
- 5200 mAh, approximately 200 splices
- Storage
- 10,000 records and 1,000 images
- Dimensions
- 156 × 155 × 152 mm
- Weight
- 1.74 kg with battery
- Operating temperature
- -15°C to 50°C
Confirm before quotation
This page does not state price, stock, lead time, warranty, or accessory compatibility. Confirm the model, quantity, operating environment, and required supporting items when requesting a quotation.
