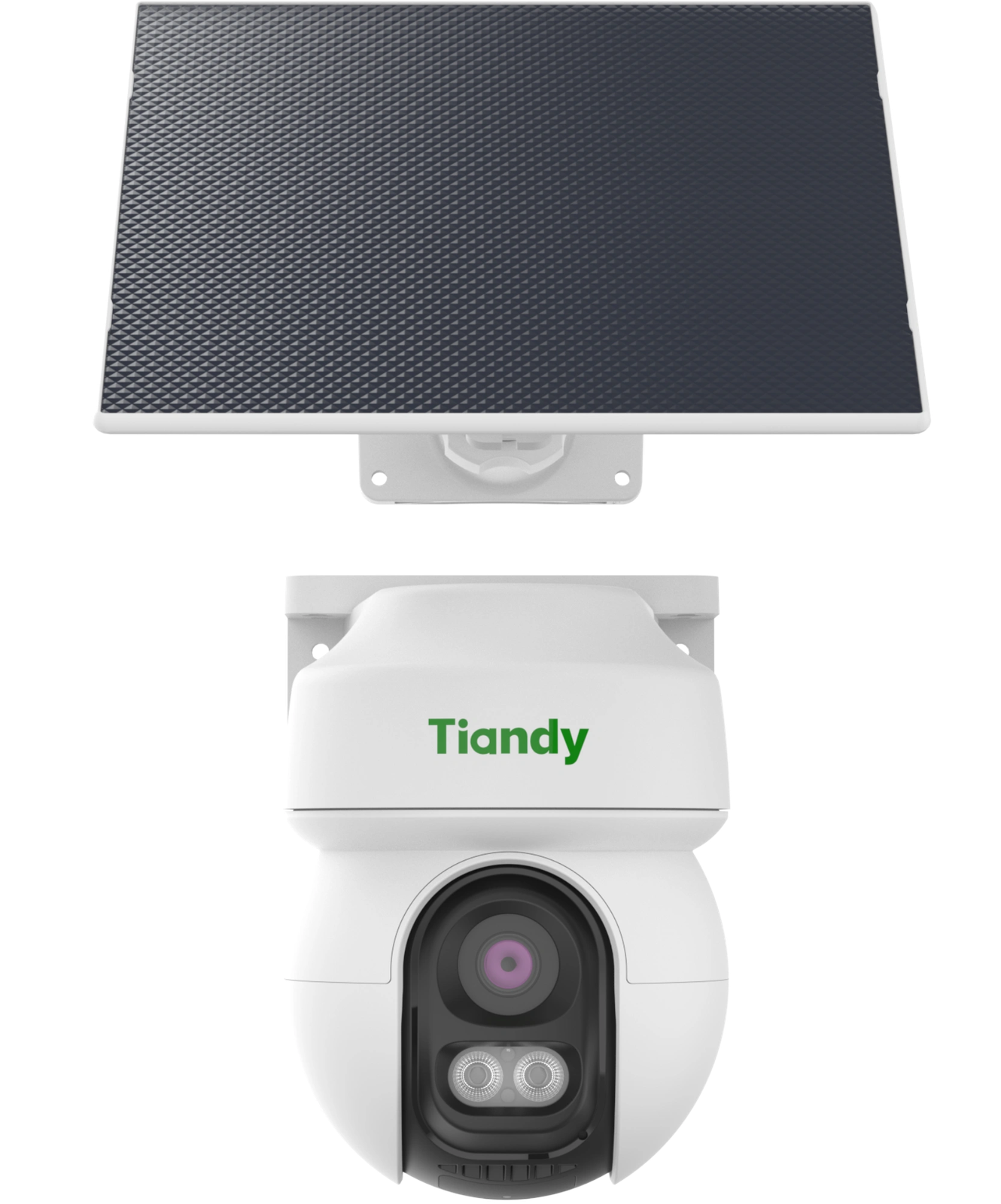

TIANDY TC-H333K 8DA-4 3MP Color Maker 4G Solar PT Camera
Sunflower-series 3MP 4G PT camera with 2304×1296@20fps video, a fixed 4 mm lens, IR up to 30 m, 15 m white light, auto-tracking, built-in microphone and speaker, microSD up to 256 GB, and IP65 protection.
Ask about this product on WhatsAppProduct description
The TIANDY TC-H333K 8DA-4 is a 3MP Color Maker 4G PT camera in the Sunflower solar-and-battery-integrated range. It uses a 1/3-inch CMOS sensor and a fixed 4 mm F1.6 lens, covers 0–345° pan and 0–90° tilt, and supports human and vehicle detection plus auto-tracking. Illumination reaches up to 30 m with IR and 15 m with white light; the camera also includes a microphone, speaker, and microSD storage up to 256 GB. The official page does not state the 4G bands, SIM type, battery capacity, or solar-panel electrical specification, so those four items must still be confirmed against the supplied unit.
Reviewed specifications
The specifications below follow the approved product data. The supplied version must still be matched to the project requirements.
- Official model
- TC-H333K 8DA-4
- Type
- 4G Color Maker PT camera, solar-and-battery-integrated series
- Image sensor
- 1/3-inch CMOS
- Maximum resolution
- 3MP, 2304 × 1296 @ 20 fps
- Lens
- Fixed 4 mm, M12, F1.6
- Field of view
- 79.6° H; 42.5° V; 91.7° D
- Pan / tilt
- 0–345° / 0–90°
- IR / white light
- Up to 30 m / 15 m
- Smart detection
- Human and vehicle detection; auto-tracking
- Video compression
- S+265 / H.265
- Audio
- Built-in microphone and speaker; G.711A
- Storage
- microSD / microSDHC / microSDXC up to 256 GB
- Software
- Easy7 VMS; EasyLive Plus
- Power
- DC 5 V ±25%; max. 10 W
- Protection
- IP65; 500 V surge; 6000 V ESD
- Operating temperature
- -10 °C to 50 °C; charging -5 °C to 50 °C
- Camera dimensions
- 158 × 105 × 144 mm
- Net weight
- 0.56 kg, excluding the solar panel
- Not specified on official page
- 4G bands, SIM type, battery capacity, and solar-panel electrical specification
Confirm before quotation
This page does not state price, stock, lead time, warranty, or accessory compatibility. Confirm the model, quantity, operating environment, and required supporting items when requesting a quotation.
Need to confirm the version or supporting items?
Send the model and project conditions through WhatsApp. This page makes no price, stock, or lead-time promise.
